After becoming fed up with tarps and other such things over the last Winter, I resolved to build a woodshed.

My property is sloped (good for drainage, bad for building stuff), so I had to build it on stilts. I dug three trenches and filled them with gravel, then framed out the floor on piers.

After that I did a standard 3/4" plywood floor.

The frame for the roof is mostly made of 4"X4"s.

The roof is built from 1/2" plywood and 12' 2"X6"s.

I installed your basic tarpaper and shingle roof.

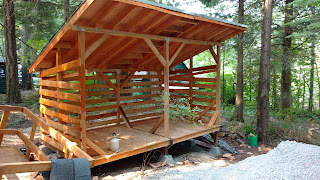

After putting up some fence planks to keep the rain off and staining it, I'm done:

_________________
My Lame Blog


Share on FacebookShare on TwitterShare on TumblrShare on Google+
Top
 Profile
Reply with quote
PostPosted: Mon Oct 02, 2017 2:05 pm
Offline
* * * * *
User avatar

Joined: Fri Aug 27, 2010 6:01 pm
Posts: 7883
Has thanked: 168 times
Been thanked: 284 times
Slick looking. Thanks for the photos.

_________________
TacAir - I'd rather be a disappointed pessimist than a horrified optimist
**All my books ** some with a different view of the "PAW". Check 'em out.
Adventures in rice storage//Mod your Esbit for better stability


Top
 Profile
Reply with quote
PostPosted: Mon Oct 02, 2017 3:45 pm
Offline
ZS Member
ZS Member

Joined: Sat Sep 18, 2010 11:05 pm
Posts: 548
Location: North Jersey
Has thanked: 35 times
Been thanked: 39 times
Great job!

_________________
A person should be able to change a diaper, plan an invasion, butcher a hog,. .., build a wall, set a bone, take and give orders, cooperate, analyze & solve problems, fight efficiently, die gallantly RH
http://johnfoberg.blogspot.com/


Top
 Profile
Reply with quote
PostPosted: Mon Oct 02, 2017 8:52 pm
Offline
* *
User avatar

Joined: Sun Jul 13, 2014 11:20 pm
Posts: 103
Location: Mt. Hood, OR
Has thanked: 5 times
Been thanked: 21 times
Thanks for all the positive comments. I should've mentioned that I started by looking at these plans, although the finished product is very different: https://www.epa.gov/sites/production/fi ... iagram.pdf

If anybody knows how to keep your firewood dry it'd be some folks who live on the tip of the Olympic peninsula.

_________________
My Lame Blog


Top
 Profile
Reply with quote
PostPosted: Mon Oct 02, 2017 11:38 pm
Offline
* *
User avatar

Joined: Tue Jan 25, 2011 4:48 pm
Posts: 138
Has thanked: 21 times
Been thanked: 22 times
Looks great!

While I know there are many considerations required for keeping firewood dry (like airflow), I am woefully uninformed in this subject. Can you go into some of the considerations or limitations you had to keep in mind when constructing your woodshed? Are there specific desirable features you made sure you included in the build?

Thanks!


Top
 Profile
Reply with quote
PostPosted: Tue Oct 03, 2017 12:30 am
Offline
* *
User avatar

Joined: Sun Jul 13, 2014 11:20 pm
Posts: 103
Location: Mt. Hood, OR
Has thanked: 5 times
Been thanked: 21 times
You pretty much hit the nail on the head - you want to keep the rain off it but also allow it to breathe.
In the research I did before I built the thing people kept mentioning having a 2' overhang on the front side. I went with a little bit more than that to be on the safe side. A week or two ago we got almost two inches of rain one day (temperate rain forest), and everything stayed dry.
The fence slats have the spaces between them so that air can flow through but the majority of the rain is kept off the wood. This seems to be a very common design here, pretty much every woodshed I've seen is built that way.
As an aside, a few years ago my wife got me the book Norwegian Wood. It has lots of information about wood heat, as well as interesting stories about various people the author met. I can't exactly call it a prepping book in the literal sense of the word, but if you are using wood heat you pretty much have to be prepping simply because of the need to gather and store a large amount of the stuff.

_________________
My Lame Blog


Top
 Profile
Reply with quote
PostPosted: Tue Oct 03, 2017 3:17 pm
Offline
* *
User avatar

Joined: Tue Jan 25, 2011 4:48 pm
Posts: 138
Has thanked: 21 times
Been thanked: 22 times
Zembecowicz wrote:
You pretty much hit the nail on the head - you want to keep the rain off it but also allow it to breathe.
In the research I did before I built the thing people kept mentioning having a 2' overhang on the front side. I went with a little bit more than that to be on the safe side. A week or two ago we got almost two inches of rain one day (temperate rain forest), and everything stayed dry.
The fence slats have the spaces between them so that air can flow through but the majority of the rain is kept off the wood. This seems to be a very common design here, pretty much every woodshed I've seen is built that way.
As an aside, a few years ago my wife got me the book Norwegian Wood. It has lots of information about wood heat, as well as interesting stories about various people the author met. I can't exactly call it a prepping book in the literal sense of the word, but if you are using wood heat you pretty much have to be prepping simply because of the need to gather and store a large amount of the stuff.

Awesome, thanks for the info!


Top
 Profile
Reply with quote
PostPosted: Sun Oct 15, 2017 7:02 am
Offline
*

Joined: Sun Nov 02, 2014 6:32 pm
Posts: 91
Location: Ohio
Has thanked: 6 times
Been thanked: 25 times
Nice work. I built mine similarly. If I recall correctly I got my basic design info from a solid fuel heating book from a guy based in New England. But yeah the basics are the same wherever it rains I guess - keep the water off and allow it to breathe.

Most of the guys around here (mostly talking about outdoor boilers) just literally pile their wood (not stacking), often right up against a building, without splitting, not seasoned, etc. This is the basic reason their boilers smoke like a coal fired locomotive giving wood heat a bad name. Of course these are the same knuckleheads that burn railroad ties.

Do you know the capacity? I believe mine is 5 cords stuffed to the gills.

Thanks for posting.


Top
 Profile
Reply with quote
PostPosted: Wed Oct 18, 2017 1:26 pm
Offline
* *
User avatar

Joined: Sun Jul 13, 2014 11:20 pm
Posts: 103
Location: Mt. Hood, OR
Has thanked: 5 times
Been thanked: 21 times
Thanks for the compliment.
If I did my math right it holds six cords.
Pretty much everybody has wood heat up here. Some folks have propane tanks and you will still come across the odd oil burner here and there. It rains a lot more than in the lower elevations because storms hit the mountain side, so pretty much everybody pays some level of attention to keeping their wood dry.

_________________
My Lame Blog


Top
 Profile
Reply with quote
PostPosted: Wed Oct 18, 2017 1:31 pm
Offline
ZS Member
ZS Member
User avatar

Joined: Thu Jun 04, 2015 3:56 pm
Posts: 961
Location: Possum Kingdom, East Coast
Has thanked: 2286 times
Been thanked: 181 times
I don't use the fireplace all that often so I don't need the wood. I have about 2 cords stacked back in the treeline from a tree I took down but it is mostly a backstop for my archery targets. (Dang if that wood don't break down fast exposed to the elements.)

Still, thanks for a thread with a good explanation and graphics. Stuff like this can be used by a lot of folks when they come searching.

_________________
It's not what you look at that matters, it's what you see.
Henry David Thoreau


Top
 Profile
Reply with quote
PostPosted: Wed Oct 18, 2017 11:20 pm
Offline
* *
User avatar

Joined: Sun Jul 13, 2014 11:20 pm
Posts: 103
Location: Mt. Hood, OR
Has thanked: 5 times
Been thanked: 21 times
I have a masonry fireplace in addition to my stove. The thing is all but useless as a heat source. I burn lumber scraps in it, but I don't waste good firewood on it.

_________________
My Lame Blog


Top
 Profile
Reply with quote
PostPosted: Tue Oct 24, 2017 7:59 pm
Offline

Joined: Tue Oct 24, 2017 2:18 pm
Posts: 6
Has thanked: 0 time
Been thanked: 0 time
That's cool man. My Dad would be jealous. My parents live on a smallholding and he's built something off the back of the carport.

Like you say, it's all about letting the wood breathe.

You can by a moisture gauge to test moisture levels inside the wood. If I remember rightly, the last guy that dumped a truck load said under 20% is fine.

We've managed to cut trees and get less than 20% within 6 months...others have taken 2 years.
