WELCOME to all the new ZS members that have signed up of late.

THere many of these threads, read, enjoy, learn, prepare.
******************************************************


Having trouble using that cup on the ol' Esbit to heat up your dinner? Do you balance the cup on a partially closed stove - but worry that it will tip over? In searching the site, I did not see anything on this.

Well, here is a set of mods to the stove that should fix that problem - and allow you to use a USGI canteen cup or commercial cook pot on your Esbit without worry.

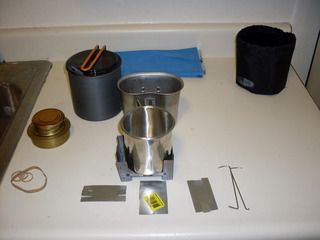

This shows the cup, the problem and parts needed to fix the problem.

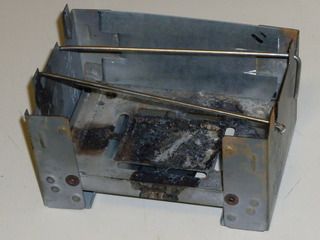

This shows the spoke parts in place and one windscreen piece in place.
Set up like this, you can burn wood to cook with as well.

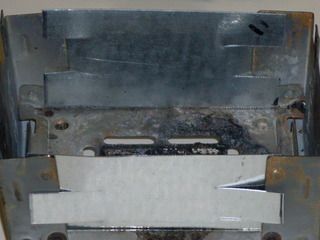

With both windscreen parts in place. Very stable for USGI canteen cup or other larger cook pot.

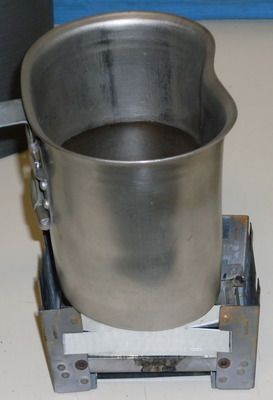

Here is the stove with a USGI canteen cup

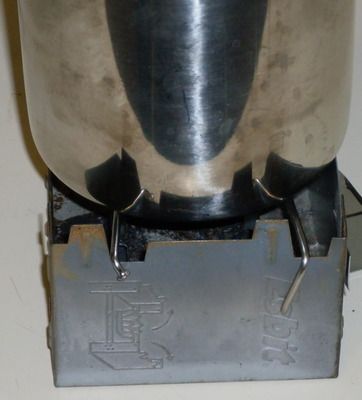

and a commercial 'camping cup'

You should be able to dope out how to cut these items after looking at the photos. The windscreen material is a roofing patch from Home Depot, the spoke was obtained from the local REI bike repair shop just for the asking.

The windscreen mod has been floating around the net for some time, but the use of the spokes is new - to me at least. Hope this helps you update your kit to make it more cooking friendly.

_________________
TacAir - I'd rather be a disappointed pessimist than a horrified optimist
**All my books ** some with a different view of the "PAW". Check 'em out.
Adventures in rice storage//Mod your Esbit for better stability


Last edited by TacAir on Thu Oct 18, 2012 2:44 pm, edited 3 times in total.

Share on FacebookShare on TwitterShare on TumblrShare on Google+
Top
 Profile
Reply with quote
PostPosted: Mon Jan 24, 2011 3:55 pm
Offline
* * * * *
User avatar

Joined: Wed Mar 10, 2010 2:08 pm
Posts: 2414
Location: South East PA
Has thanked: 7 times
Been thanked: 19 times
Nice. Thanks for posting.

_________________
Democracy is two wolves and a sheep deciding what to eat for lunch.
Liberty is a well-armed sheep contesting the vote.


BOB & EDC | FAK


Top
 Profile
Reply with quote
PostPosted: Mon Jan 24, 2011 4:26 pm
Offline
* *
User avatar

Joined: Sun Aug 02, 2009 8:44 pm
Posts: 200
Location: Alabama, USA
Has thanked: 0 time
Been thanked: 0 time
Nice mod, pics and tips. I will give it a try. Thanks for sharing.

_________________
Glock, accept no subsitutes!


Top
 Profile
Reply with quote
PostPosted: Mon Jan 24, 2011 6:12 pm
Offline
ZS Donor
ZS Donor
User avatar

Joined: Fri Apr 16, 2010 9:35 am
Posts: 3070
Location: San Diego, CA
Has thanked: 12 times
Been thanked: 19 times
I like your Trangia pot stand. Is that galvanized steel?

_________________
shrapnel wrote:
Dawgboy, please refrain from stirring shit for the sole purpose of stirring shit.


[ZS/]# .40/Pie/CERT/Wireless...
My homebrew stove kit
IMPROVED Solar Redneck Hot tub
Dawgvan
Chupa Chihuahua
GHB


Top
 Profile
Reply with quote
PostPosted: Mon Jan 24, 2011 9:29 pm
Offline
* * * * *
User avatar

Joined: Fri Aug 27, 2010 6:01 pm
Posts: 7878
Has thanked: 168 times
Been thanked: 282 times
Dawgboy wrote:
I like your Trangia pot stand. Is that galvanized steel?


Made from a 'roof repair' square found at Home Deport.

I got two Esbits + undershield for both from 1 square - $0.78 here in Anchorage.

The pot stand is made from one square with the 'extra' used under the alcohol stove. A bad copy of a commercial product, but for 78c - works for me. Still needs some work - corners are sharp and so on.

It will hold a full canteen cup or my GSI pot. Works with the Trangia military stove and both the large and small Sterno cans. I cut it to mimic the same height above source as a commercial Sterno brand folding stove.

Folds flat - compliments the windscreen, which I picked up in 1970 IIRC. The folds flat allows for storage in the 'radio pocket' of my Medium ALICE ruck.

FWIW, I just don't think Stermo gets the love it should as a great multiuse cooking stove.

Thanks for the kind words.


10/17/14 Edit
I picked up a Bushbox stove (or a potholder depending on how you look at it). Works great for both Esbit tabs and holds my Tragina alcohol burner. See viewtopic.php?f=14&t=113991&p=2547514&hilit=bushbox#p2547514


You can also make a foil 'wrapper' for the Esbit tab to get a slightly longer burn. I used a strip cut from a soda can.



_________________
TacAir - I'd rather be a disappointed pessimist than a horrified optimist
**All my books ** some with a different view of the "PAW". Check 'em out.
Adventures in rice storage//Mod your Esbit for better stability


Last edited by TacAir on Fri Oct 17, 2014 6:48 pm, edited 1 time in total.

Top
 Profile
Reply with quote
PostPosted: Thu Jan 27, 2011 12:57 pm
Offline
* * * * *

Joined: Tue Jul 06, 2010 8:34 pm
Posts: 1406
Location: Seattle area
Has thanked: 1 time
Been thanked: 6 times
Simple, and effective. You DON'T get any better than that! I might have to do this instead of tinfoil (have an ESBiT, and a USGI unit).


Top
 Profile
Reply with quote
PostPosted: Thu Jan 27, 2011 1:04 pm
Offline
* * * * *
User avatar

Joined: Fri Aug 27, 2010 6:01 pm
Posts: 7878
Has thanked: 168 times
Been thanked: 282 times
shoggoth80 wrote:
Simple, and effective. You DON'T get any better than that! I might have to do this instead of tinfoil (have an ESBiT, and a USGI unit).


I had used foil in the past - but the little pieces fit inside and the Esbit will now hold all different kinds of pots. I 'tested' it with a USGI canteen cup, Coleman 16 oz 'cup/pot' and a GSI cup and GSI Solo pot. Works good with all of 'em. Weight difference is minimal.

My next test is to add olive oil soaked wood bits with 1/2 an Esbit tab to see if I can heat more with fewer tabs.

Good luck with your mods and thanks for the kind words.

_________________
TacAir - I'd rather be a disappointed pessimist than a horrified optimist
**All my books ** some with a different view of the "PAW". Check 'em out.
Adventures in rice storage//Mod your Esbit for better stability


Top
 Profile
Reply with quote
PostPosted: Thu Oct 27, 2011 10:14 am
Offline
* * * * *
User avatar

Joined: Fri Aug 27, 2010 6:01 pm
Posts: 7878
Has thanked: 168 times
Been thanked: 282 times
bump for the new members to what is hiding in the board archives.

_________________
TacAir - I'd rather be a disappointed pessimist than a horrified optimist
**All my books ** some with a different view of the "PAW". Check 'em out.
Adventures in rice storage//Mod your Esbit for better stability


Top
 Profile
Reply with quote
PostPosted: Thu Dec 22, 2011 11:13 pm
Offline

Joined: Mon Dec 19, 2011 11:17 am
Posts: 2
Location: wisconsin
Has thanked: 0 time
Been thanked: 0 time
I want to do that as my project for this year. This post might be old but it's worth reading. Thanks for sharing! It looks easy to make.

_________________
Never take life too seriously. Nobody gets out alive anyway.- Jotul Wood Stoves


Top
 Profile
Reply with quote
PostPosted: Thu Dec 22, 2011 11:34 pm
Offline
*
User avatar

Joined: Tue Oct 24, 2006 7:39 pm
Posts: 57
Location: The Kingdom Of Nye
Has thanked: 0 time
Been thanked: 0 time
Neat tip. I love Esbit stoves and all my BOBs have at least one in them.. I will dig one out and try this.. great idea.


Top
 Profile
Reply with quote
PostPosted: Thu Dec 22, 2011 11:53 pm
Offline
ZS Lifetime Member
ZS Lifetime Member
User avatar

Joined: Tue Aug 23, 2011 1:18 pm
Posts: 3110
Has thanked: 167 times
Been thanked: 287 times
I <3 you guys. I have exactly that stove in the BOB, and the alpine cup is a bit wobbly on it. I will be going to Home Depot some time after Xmas to get a roof repair square, have to figure out the spoke...

_________________
"When someone shows you who they are believe them" M. Angelou


Top
 Profile
Reply with quote
PostPosted: Sat Dec 24, 2011 9:43 pm
Offline
* * * *
User avatar

Joined: Sat Sep 27, 2008 2:52 am
Posts: 866
Location: Casstown, Ohio
Has thanked: 0 time
Been thanked: 2 times
Question...

What is the third rectangle of metal used for? The one with the yellow tag. Leftover metal? or... Guessing it could be used in the bottom of the esbit stove to keep the bottom from burning out?

_________________
____________
Joseph aka WY_Not - Founding Member, Chapter Officer
ZSC:029 - North East Ohio Zombie Squad
ZS Fleet # - 0183


Top
 Profile
Reply with quote
PostPosted: Sat Dec 24, 2011 11:29 pm
Offline
* * * * *
User avatar

Joined: Wed Oct 19, 2011 1:55 pm
Posts: 1856
Has thanked: 8 times
Been thanked: 90 times
I've never had an issue using the USGI Canteen cup on this, but I like the idea of the windscreen. Thanks for sharing Tac-Air...looking like roofing repair metal is the next thing on my shopping list!

_________________
"The trick, William Potter, is not minding that it hurts..."
http://www.zombiehunters.org/forum/viewtopic.php?f=92&t=94046&p=2141127&hilit=survival+bow#p2141127



Top
 Profile
Reply with quote
PostPosted: Sat Dec 24, 2011 11:33 pm
Offline
* * * * *
User avatar

Joined: Wed Oct 19, 2011 1:55 pm
Posts: 1856
Has thanked: 8 times
Been thanked: 90 times
TacAir wrote:
Dawgboy wrote:
.

FWIW, I just don't think Stermo gets the love it should as a great multiuse cooking stove.



Ditto...the Sterno folding stove is my first choice of out-doors stoves...simple, compact, efficient. The Esbit is my back-up/BOB stove.

_________________
"The trick, William Potter, is not minding that it hurts..."
http://www.zombiehunters.org/forum/viewtopic.php?f=92&t=94046&p=2141127&hilit=survival+bow#p2141127



Top
 Profile
Reply with quote
PostPosted: Sun Dec 25, 2011 12:05 am
Offline
* * * * *
User avatar

Joined: Tue Dec 08, 2009 11:49 pm
Posts: 4176
Location: VT
Has thanked: 0 time
Been thanked: 1 time
Awesome! The esbit is my stove of choice so I will definitely be doing these mods to it! Can you measure your windscreen pieces and spokes so I can cut some out the same size?

_________________
docdredd wrote:
those pandas need to harden the fuck up




Top
 Profile
Reply with quote
PostPosted: Sun Dec 25, 2011 12:18 am
Offline
* * * * *
User avatar

Joined: Fri Aug 27, 2010 6:01 pm
Posts: 7878
Has thanked: 168 times
Been thanked: 282 times
AKFTW wrote:
Awesome! The esbit is my stove of choice so I will definitely be doing these mods to it! Can you measure your windscreen pieces and spokes so I can cut some out the same size?



I did these 'by eye. The measurements aren't critical. And there are several different 'Esbit' stoves out there.

A pair of aviation snips are easier to use than the older sheers.

The spokes were bent, laid across the stove and bent a second time, then cut.

Good luck.

_________________
TacAir - I'd rather be a disappointed pessimist than a horrified optimist
**All my books ** some with a different view of the "PAW". Check 'em out.
Adventures in rice storage//Mod your Esbit for better stability


Top
 Profile
Reply with quote
PostPosted: Sun Dec 25, 2011 1:27 am
Offline
* * * * *
User avatar

Joined: Tue Dec 08, 2009 11:49 pm
Posts: 4176
Location: VT
Has thanked: 0 time
Been thanked: 1 time
Sounds good. I have the same model commercial Esbit as in your pics.

_________________
docdredd wrote:
those pandas need to harden the fuck up




Top
 Profile
Reply with quote
PostPosted: Sat Jan 07, 2012 10:44 pm
Offline
* * * * *
User avatar

Joined: Tue Dec 08, 2009 11:49 pm
Posts: 4176
Location: VT
Has thanked: 0 time
Been thanked: 1 time
Just did the windscreen parts, got the roof repair thing for free from Home Depot, the guy at the register said "If it's not important enough to put a price sticker on it, I don't think they'll mind" :lol: Going to the bike shop around the block tomorrow to see about a spoke. I actually made mine even MORE user friendly by cutting the sharp points off of the windscreen pieces. I used EMT shears to cut it out. Measures 2"x4" if anyone is curious.

_________________
docdredd wrote:
those pandas need to harden the fuck up




Top
 Profile
Reply with quote
PostPosted: Sun Jan 08, 2012 12:04 am
Offline
* * * * *
User avatar

Joined: Fri Aug 27, 2010 6:01 pm
Posts: 7878
Has thanked: 168 times
Been thanked: 282 times
AKFTW wrote:
Just did the windscreen parts, got the roof repair thing for free from Home Depot, the guy at the register said "If it's not important enough to put a price sticker on it, I don't think they'll mind" :lol: Going to the bike shop around the block tomorrow to see about a spoke. I actually made mine even MORE user friendly by cutting the sharp points off of the windscreen pieces. I used EMT shears to cut it out. Measures 2"x4" if anyone is curious.


Cool-ness. Post pics when done - if you please.

_________________
TacAir - I'd rather be a disappointed pessimist than a horrified optimist
**All my books ** some with a different view of the "PAW". Check 'em out.
Adventures in rice storage//Mod your Esbit for better stability


Top
 Profile
Reply with quote
PostPosted: Sat Dec 08, 2012 4:15 pm
Offline
ZS Member
ZS Member
User avatar

Joined: Thu Jan 19, 2012 7:32 am
Posts: 1068
Location: Ontario, CAN
Has thanked: 88 times
Been thanked: 21 times
Simply brilliant. Thanks!

_________________
“This is the part in the movie where that guy says, "Zombies? What zombies?" just before they eat his brains. I don't want to be that guy.” ― Holly Black, Kin

My Woods Bumming Kit / My Day Hike Pack/GHB / My Personal BOB / Our Family BOB / My Youtube Channel


Top
 Profile
Reply with quote
PostPosted: Wed Feb 06, 2013 6:07 pm
Offline
*

Joined: Sat Jan 14, 2012 8:45 am
Posts: 70
Has thanked: 0 time
Been thanked: 0 time
Was reading this and galvanized metal was brought up. Just a word of caution. Galvanized metal when heated will release zinc fumes which will make you very ill. It can also get into your food if you are cooking over it.

Cool mods.


Top
 Profile
Reply with quote
PostPosted: Wed Feb 06, 2013 6:20 pm
Offline
* * * * *
User avatar

Joined: Thu Oct 15, 2009 10:49 am
Posts: 4097
Location: Pickle Bucket Brigade
Has thanked: 0 time
Been thanked: 2 times
You would be surprised how much sheet-stainless is laying around in everyday junk/goodwill stuff (small trashcans, old toasters, office stuff, broken kitchen appliances), ... It might be better to liberate some of that, than to use the galvanized stuff... But I would also guess, if you do a good long test burn & make it hot (and avoid the fumes) you will burn off whatever is going to burn off... But as always, sgoti (some guy on the internet) & ymmv.

_________________


Top
 Profile
Reply with quote
PostPosted: Wed Feb 06, 2013 6:52 pm
Offline
ZS Member
ZS Member
User avatar

Joined: Wed Feb 10, 2010 10:17 am
Posts: 5056
Location: The Mythical State of Jefferson
Has thanked: 117 times
Been thanked: 28 times
angelofwar wrote:
TacAir wrote:
Dawgboy wrote:
.

FWIW, I just don't think Stermo gets the love it should as a great multiuse cooking stove.


Ditto...the Sterno folding stove is my first choice of out-doors stoves...simple, compact, efficient. The Esbit is my back-up/BOB stove.

In my vehicle-oriented (Read: Heavy, live-in-the-car) GHB, there is always a folding Sterno stove and two cans of fuel. Nothing to break, nothing to fiddle with in the cold and dark. Just flip, uncap, and light. And if you need a firestarter, a dab of the Sterno fuel is awesome.

I've always liked the Esbit design, but I've never been a fan of all the fouling the tabs leave behind. This conversion now has me very interested in picking one up for almost exclusive use with wood as a fuel.

_________________
goofygurl wrote:
Dogan – In charge of all things fucked up
Are you ready to die, John Walker?| CLAPTRAP!
Your lucky number has been disconnected.|ASCII biohazard symbol: ☣
Winner of the May/June 2013 ZS Postal Match


Top
 Profile
Reply with quote
PostPosted: Wed Feb 06, 2013 7:21 pm
Offline
* * * * *
User avatar

Joined: Fri Aug 27, 2010 6:01 pm
Posts: 7878
Has thanked: 168 times
Been thanked: 282 times
Dogan wrote:
angelofwar wrote:
TacAir wrote:
Dawgboy wrote:
.

FWIW, I just don't think Stermo gets the love it should as a great multiuse cooking stove.


Ditto...the Sterno folding stove is my first choice of out-doors stoves...simple, compact, efficient. The Esbit is my back-up/BOB stove.

In my vehicle-oriented (Read: Heavy, live-in-the-car) GHB, there is always a folding Sterno stove and two cans of fuel. Nothing to break, nothing to fiddle with in the cold and dark. Just flip, uncap, and light. And if you need a firestarter, a dab of the Sterno fuel is awesome.

I've always liked the Esbit design, but I've never been a fan of all the fouling the tabs leave behind. This conversion now has me very interested in picking one up for almost exclusive use with wood as a fuel.


Shoot some images and post 'em here so everyone can see how they turned out!

Thanks.

_________________
TacAir - I'd rather be a disappointed pessimist than a horrified optimist
**All my books ** some with a different view of the "PAW". Check 'em out.
Adventures in rice storage//Mod your Esbit for better stability


Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 25 posts ]  Go to page 1, 2  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: No registered users and 3 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum

Search for:
Jump to:
Powered by phpBB® Forum Software © phpBB Group
